Product Overview

Jinhaeng Waterway, a company that cares about customer health and nature's health

Rust Scale lonizer

Principle / effect 1Product structure and principle

It consists of brass on the outside, zinc and fluorine resin on the inside. The fluorine resin generates static electricity, and theionization of special zinc generates 1 Volt of electricity, which changes from a bed structure attached to the pipe into a non-stick ball structure to remove and prevent rust, scale, etc.

버튼

  • 01Step

    Maximization of electron (2e-) generated by potential difference between dissimilar metals
    - Electron emission using potential difference between    brass / metal zinc (0.924V)
    - Increase of electron emission by increasing a contact    area between water and metal zinc

  • 02Step

    Reduction of O2 to OH- by released electrons
    Reduction of O2 to OH- by released electrons will decrease a dissolved oxygen concentration, increasing corrosion potential of Fe → Delay of corrosion

  • 03Step

    Magnetization in metal piping
    - Hydroxide ions (OH-) produced by the released   electrons (e-) are coupled with ferric ions (Fe2+, Fe3+)
    - Magnetite formation through the FeO and Fe2O3    formation and the bonding

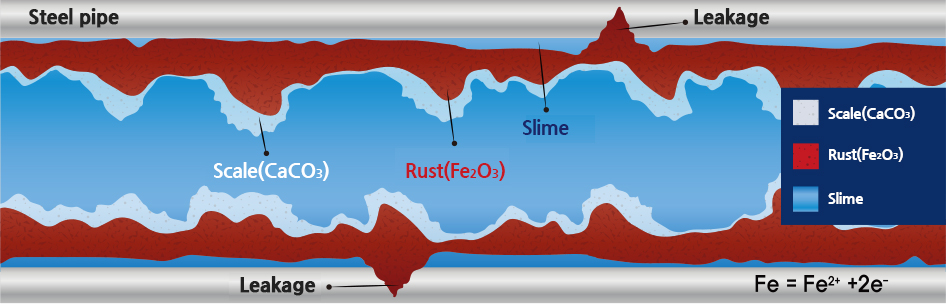

01Four Problems of Pipe Corrosion

  • Slime
    - A viscous substance produced by the combination of inorganic and organic compounds in water
    - Causes of deterioration of water quality caused by bacterial growth
  • Rust
    - Iron (Fe2+) + Water (H2O) + Oxygen (O2) - Iron oxide (Fe2O3)
    - Causes of leakage and shorted pipe life
  • Scale
    - Attachment to slime and rust in the form of calcium carbonate (CaCO3)
    - Obstruction of water flow
    - Occurring in all pipes
  • Leakage
    - This is caused by rust inside pipe
    - caused by persistent oxidation on a specific site
    - eventually leading to replacement of piping, resulting in high cost

01Confirmation through the checkpoint

In order to check the effect of the product, the inspection checkpoint is installed after observing the piping condition by cutting some of the pipe within the effective distance. The confirmation checkpoint is opened at the participant and headquarters engineers to observe the conversion of the magnetite (Fe3O4) of rust (Fe2O3)and removal of scale.

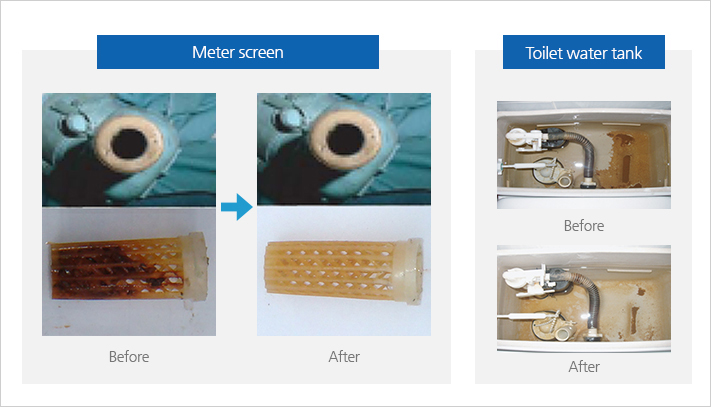

02Check meter tap and toilet water tank

Check the removal of water tap inside the meter tap and the water tank of the toilet.

03Scientific analysis confirmation

1. Confirm conversion to magnetite through Scanning Electron Microscope and X-Ray Diffraction.

2. Check if the water meets the correct drinking water quality standards.

Installation effect of the Rust Scale Ionizer

The Rust Scale Ionizer can be effectively managed by having the function of training and cleaning from the main pipe to the faucet.

  • Water quality improvement
    Soft water effect
    (Coniferous corrosion → spherical corrosion)
    Antibacterial, antibiotic effect(H2O2)
    Removal of water slime (sieve, toilet, various filters, etc.)
  • Extend pipe life
    Rust → Magnetization
    Slime, rust, scale removal
    2 to 3 times longer pipe line
  • Economic effect
    Reduced piping and total replacement costs.
    Improvement of thermal efficiency. Reduced rust prevention, coating and cleaning cost.
    Reduced the cost of every day water use such as cleaning, washing, filter, etc.
  • Better health
    Prevention of chrome by using stainless steel.
    Prevention of green rust on the surface.
    Prevent water quality deterioration. Improvement of skin conditions by
    preventing skin-related allergic diseases such as atopy

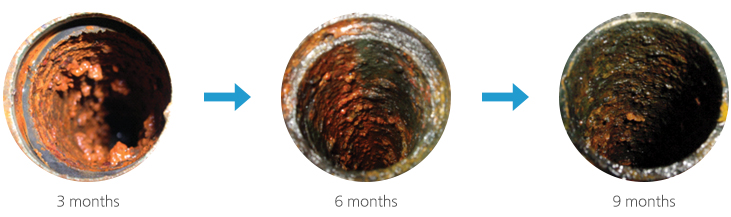

  • Transformation
    of rust

  • Scale removal

  • Remove the scale

  • Reduces generation of rust and scale
